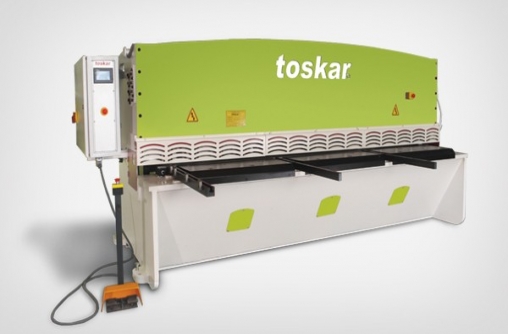

Hydraulic Swing Beam Shear S-Shear Series
Part No. 90
Standart Equipments
- • CE Norms
- • Pendant control panel
- • CNC control - Cybelec CybTouch 8 (color-touch screen)
- • Automatic cutting length (stroke) adjustment controlled by CNC
- • Ball screw backgauge with 1000 mm stroke controlled by CNC
- • Automatic calculations of cutting functions according to material specifications
- • CNC controlled automatic blade gap adjustment
- • Automatic swing-up backgauge
- • 1 meter flip-up openable finger guard with switch protection
- • Back side protection panels
- • Back light barrier
- • Rear sheet sliding plates
- • Shadow line lighting
- • Squaring arm with ruler & T-slot & tilting stop
- • Support arms
- • Ball transfer tables
- • Hold down pistons with rubber pads
- • Fixed cutting angle
- • 2 sided top & 4 sided bottom blades
- • European hydraulic system
- • European electric system
| Name | Specifications |
|---|
STANDARD FEATURES
- Rigid frame machined&welded from ST44A1 steel
- Hardened&Ground cutting blades (4 sided)- Delta touchscreen controller
- 1000 mm backgauge on ballscrews and AC motor with brake
- 1 meter front support arms
- Sheet slider panels at the back
- Hoerbieger Hydraulic System
- Siemens electrical system
- Hydraulic hold downs
- Automatic Blade Gap Adjustment system
- Automatic Stroke adjustment
- Rigid frame machined&welded from ST44A1 steel
- Hardened&Ground cutting blades (4 sided)- Delta touchscreen controller
- 1000 mm backgauge on ballscrews and AC motor with brake
- 1 meter front support arms
- Sheet slider panels at the back
- Hoerbieger Hydraulic System
- Siemens electrical system
- Hydraulic hold downs
- Automatic Blade Gap Adjustment system
- Automatic Stroke adjustment
OPTIONAL EQUIPMENTS
- Front Angle Gauge
- Sheet Conveyor and Stacking System
- Sheet Support System at the back (to support thin sheets during cutting)
- Oil Cooler and Oil Heate
r- Light Barriers on the front for finger protection
- Laser Cutting Line
- Front Angle Gauge
- Sheet Conveyor and Stacking System
- Sheet Support System at the back (to support thin sheets during cutting)
- Oil Cooler and Oil Heate
r- Light Barriers on the front for finger protection
- Laser Cutting Line
