Horizontal Band Saws
Part No. 1239

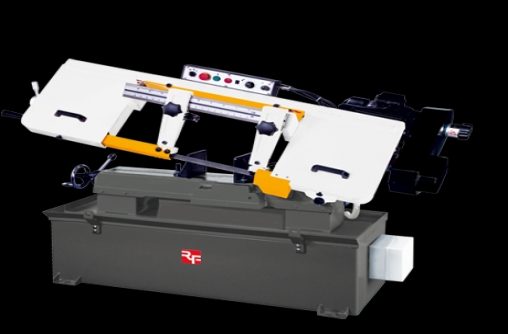

This Band Sawing Machine Is A Semi Automatic Band Sawing Machine, Which Is Mainly Used For Sawing Small And Medium-sized Profiles. The Angle Rotation Is Manual Controlled.
* The Base Of The Miter Cutting Band Sawing Machine Is A Steel Plate Structure, And A Rotating Shaft Is Installed On The Base. When The Sawing Angle Is Required, The Saw Frame Can Be Rotated Around The Rotating Shaft Within The Range Of 0 To 45º. The Rotation Of The Angle Is Driven By A Manual Screw, And The Scale Is Manually Aligned.
* Saw Frame Lifting Is Pivot Type, The Saw Frame Moves Up And Down Around The Rotating Shaft Driven By The Oil Cylinder, And The Bottom Of The Oil Cylinder Adopts A Hinge Type To Avoid Over-positioning And Affect The Stability Of The Saw Frame Lifting And Lowering.
* This Miter Cutting Band Sawing Machine Is Designed With A Separate Electrical Control Cabinet. All Electrical Components Are Installed In The Electrical Cabinet. To Ensure Safety, Interlocks Are Provided Between Each Action. Specifically: If The Vise Is Not Clamped, And The Main Drive Cannot Work; During The Sawing Process, The Vise Must Not Be Loosened; All Actions Are Controlled By Relay Lines And Button Operation.
- Casting structure assures machanical strength.
- Fully adjustable hydraulic downfeed controls the rate of descent
- Full blade cover provides more safety.
- Gear drive system provides speed changing when saw blade is in unload running.
- Bearing carbide guide enhances cutting stability and extends the blade life.
- Cutting angle from 0 degree to 45 degree.
- Stand jointed with water pan for collecting chip and water
- Coolant system for wet cutting.
- With Bi-metal blade, chip brush and length stop set
- Wheel kit for convenient moving to various work stations
| Name | Specifications |
|---|
